Antennas Direct ClearStream JUICE4 Distribution Amplifier, Silver

• 4-Output Distribution Amplifier: Boosts signal to be split for reception of free broadcast TV on up to four TVs or digital converter boxes without impacting quality; Supports ATSC 3.0 NEXTGEN TV, 4K 8K UHD

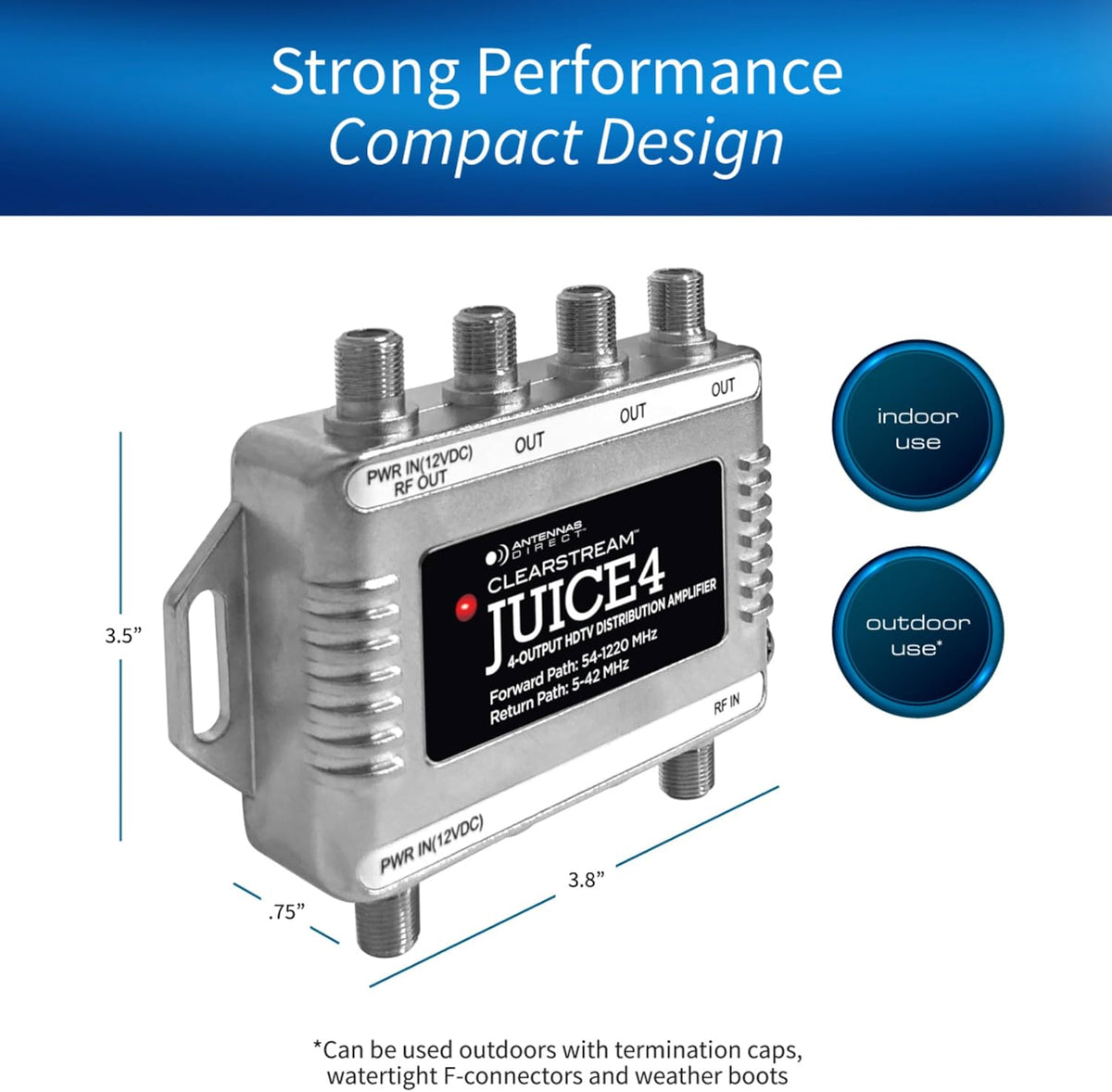

• Compact Design for Versatile Installation: Measures 3.5" H x 3.8" W x 1" D; Compact size for indoor use, can be used outdoors with termination caps, watertight F-connectors, and weather boots; Compatible with HDTV, analog, digital TV antenna applications, legacy CATV

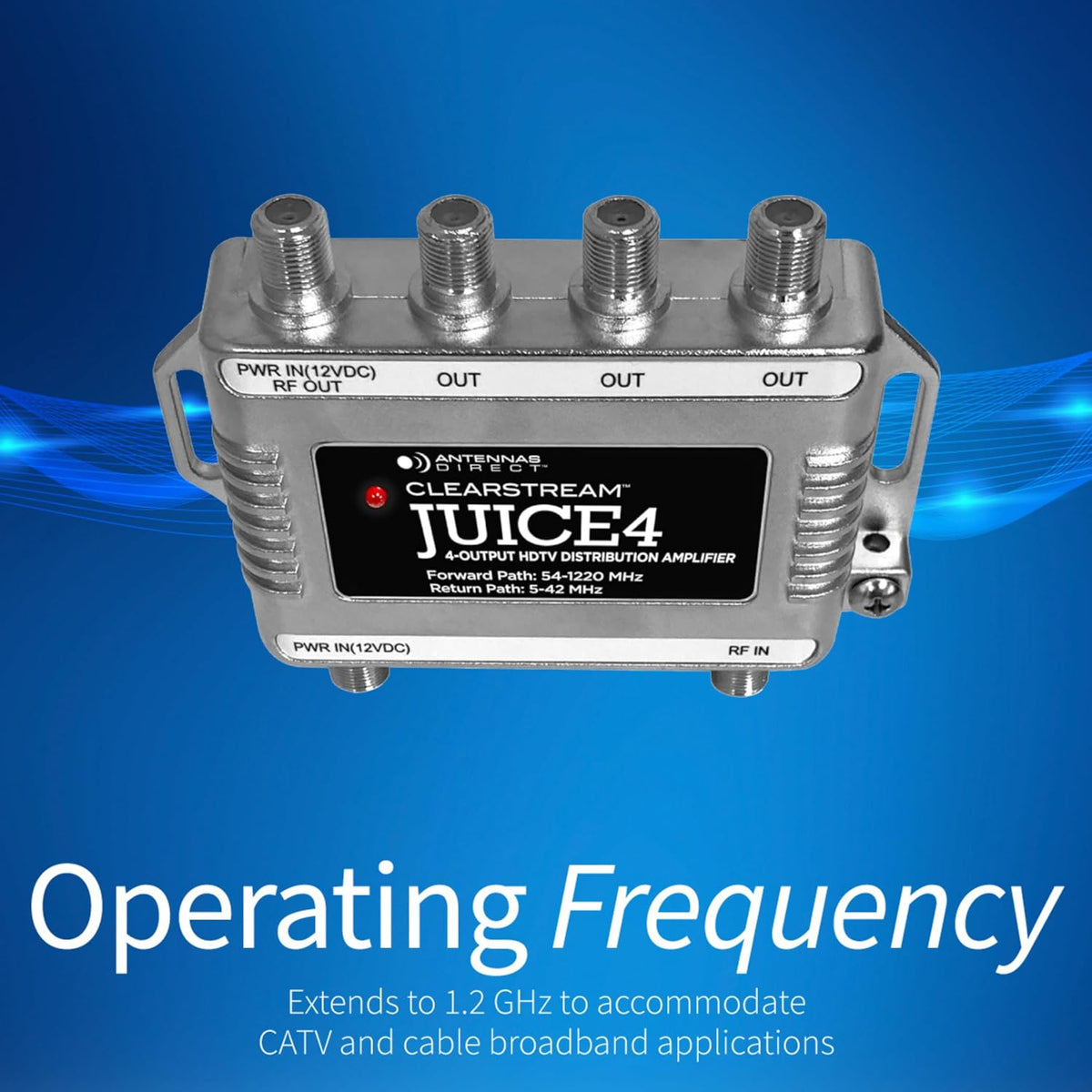

• Extended Frequency Range: Operating frequency extends to 1.2 GHz to accommodate CATV and cable broadband applications
• Reception Considerations: Each market has TV towers located in different areas; Distance to the towers and obstructions like trees and your home's building materials will affect reception; an antenna cannot provide cable TV channels

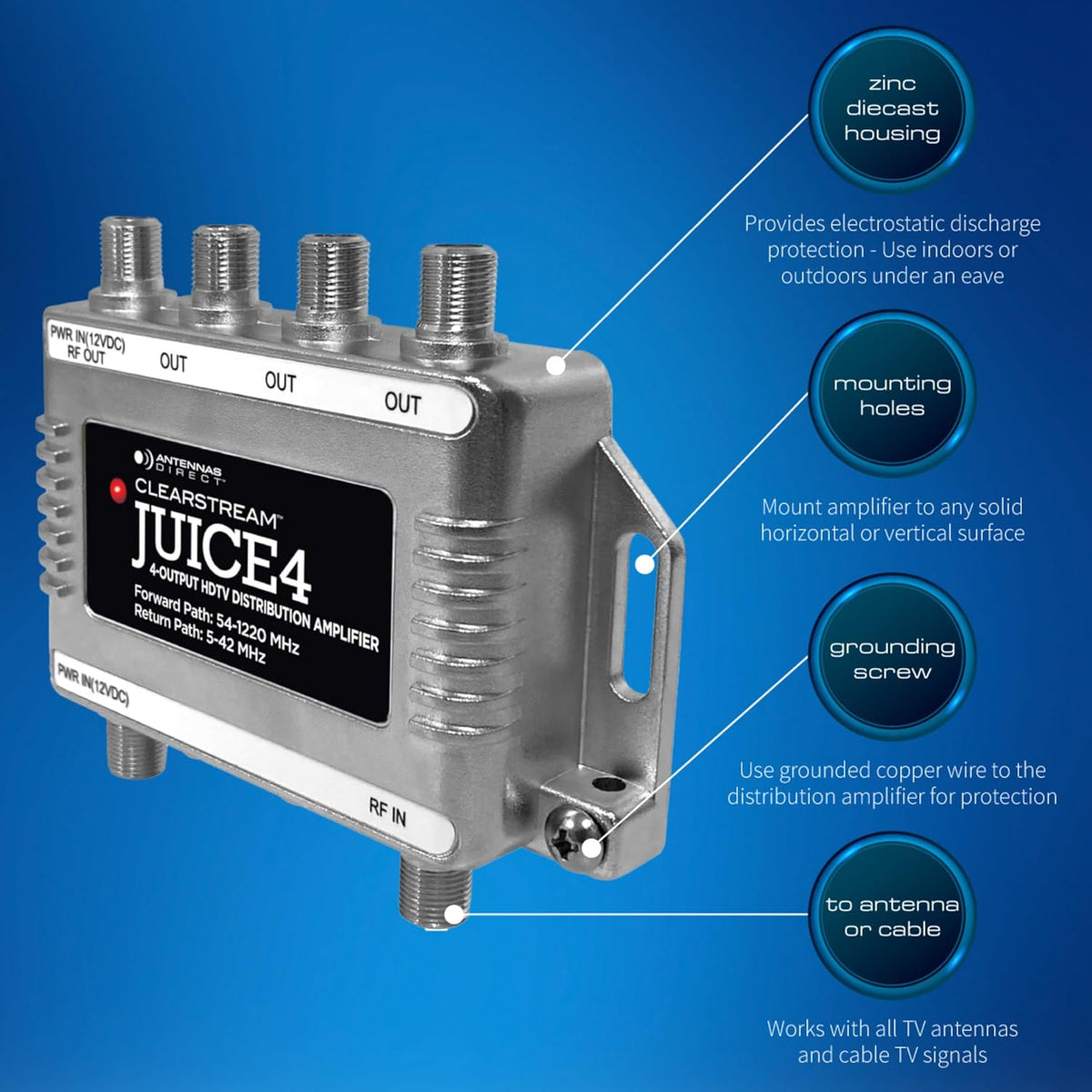

• Durable Housing with Protection Features: Precision machine-sealed zinc diecast housing protects against dust and water droplets and provides shielding from electrostatic discharge; Excellent surge protection on all ports
• Signal Amplification Specifications: Provides 8.5 dB gain per port at 54-750 MHz, 7.5 dB gain per port at 751-1000 MHz, and 7 dB gain per port at 1001-1220 MHz with low noise figure of less than 3 dB
• Based in St. Louis, MO., Antennas Direct is dedicated to providing superior digital antennas and accessories engineered in the USA

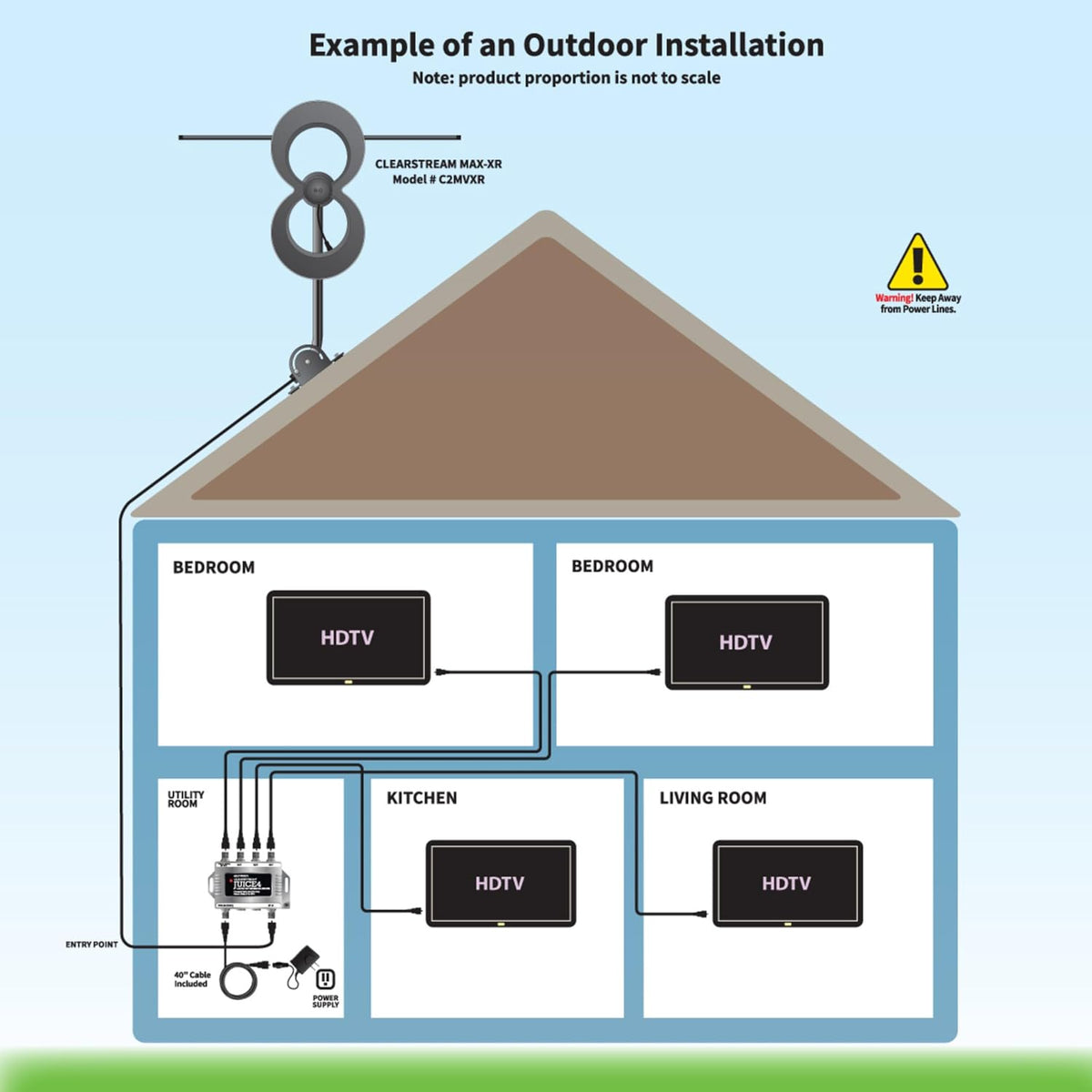

The Antennas Direct ClearStream JUICE4 amplifier boosts the TV signal from your indoor or outdoor TV antenna or CATV system and distributes that signal to as many as four TVs. Distributing signal to multiple TVs and using 50 ft. or more of coaxial cable can result in some signal loss. The JUICE4 helps overcome these signal challenges by strengthening the signal coming in from the TV antenna’s coaxial cable for clear, consistent reception and picture quality. This 4-output distribution amplifier is designed to be used in homes and professional settings in urban, suburban, and rural areas. Operating frequency extends to 1.2 GHz to accommodate CATV and cable broadband applications. Precision machine-sealed zinc diecast housing protects against dust and water droplets and provides shielding from electrostatic discharge, with excellent surge protection on all ports. Can be used outdoors with 75 Ohm F-termination caps, coaxial cables that have watertight F-connectors, and a power inserter (not included) to allow the power adapter to share the coaxial cable connected to the designated output shown on this device. Details: Dimensions: 3.5" H x 3.8" W x 1" D; Weight: 8.8 oz.; Compatibility: Indoor / outdoor, HDTV, analog, digital antenna installations, legacy CATV systems; Frequency Range: Forward Path 54-1220 MHz, Return Path 5 - 42 MHz; Low Noise Figure:

Specifications

• Antenna: Television
• Color: Silver
• Number of Channels: 4
• Impedance: 75 ohm
• Product Dimensions: 3.8"L x 1"W x 3.5"H
• Number of Packs: 1
• Unit Count: 1 Count
• AntennaDescription: Television

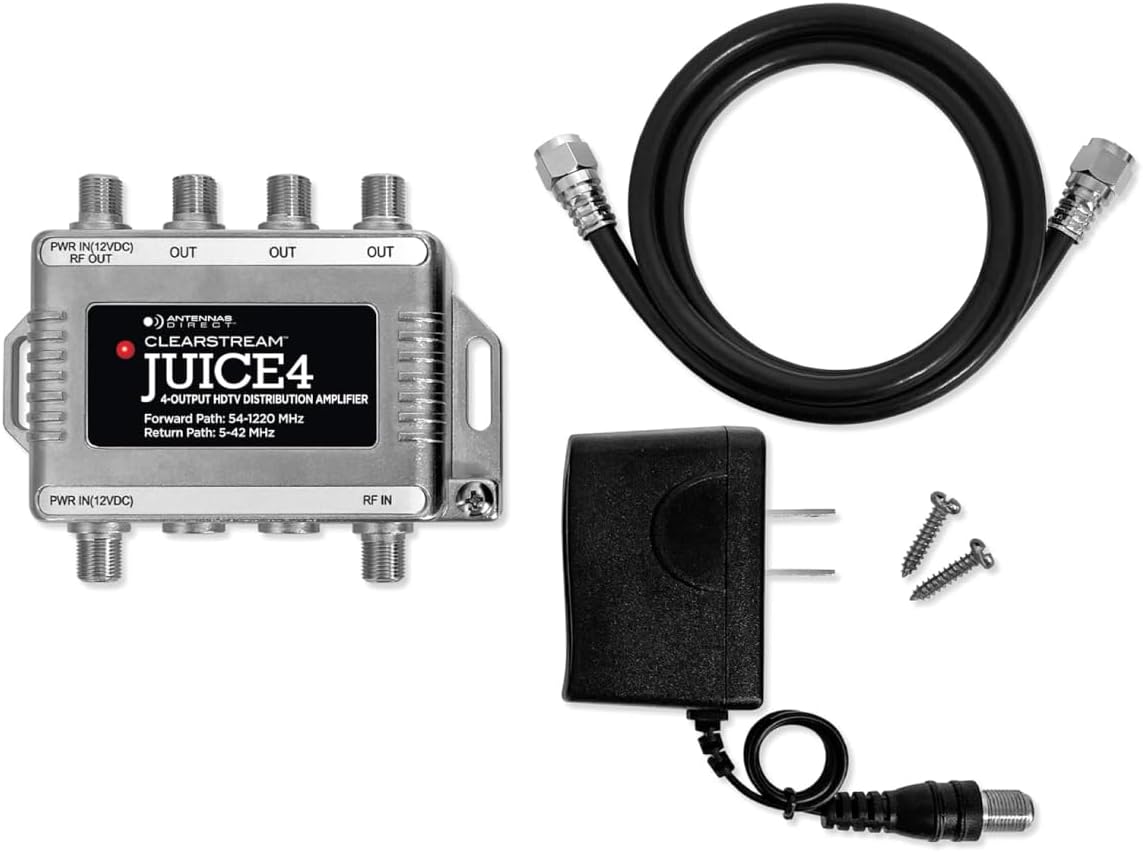

• Item Highlight: Output to 4 Televisions, CATV Systems, NEXTGEN TV 4K 8K Ready, 12V DC Power Adapter, RG6 40" Coaxial Cable
• Number of Items: 1
• Built-In Media: 12V DC power adapter
• Item Weight: 9.6 ounces
