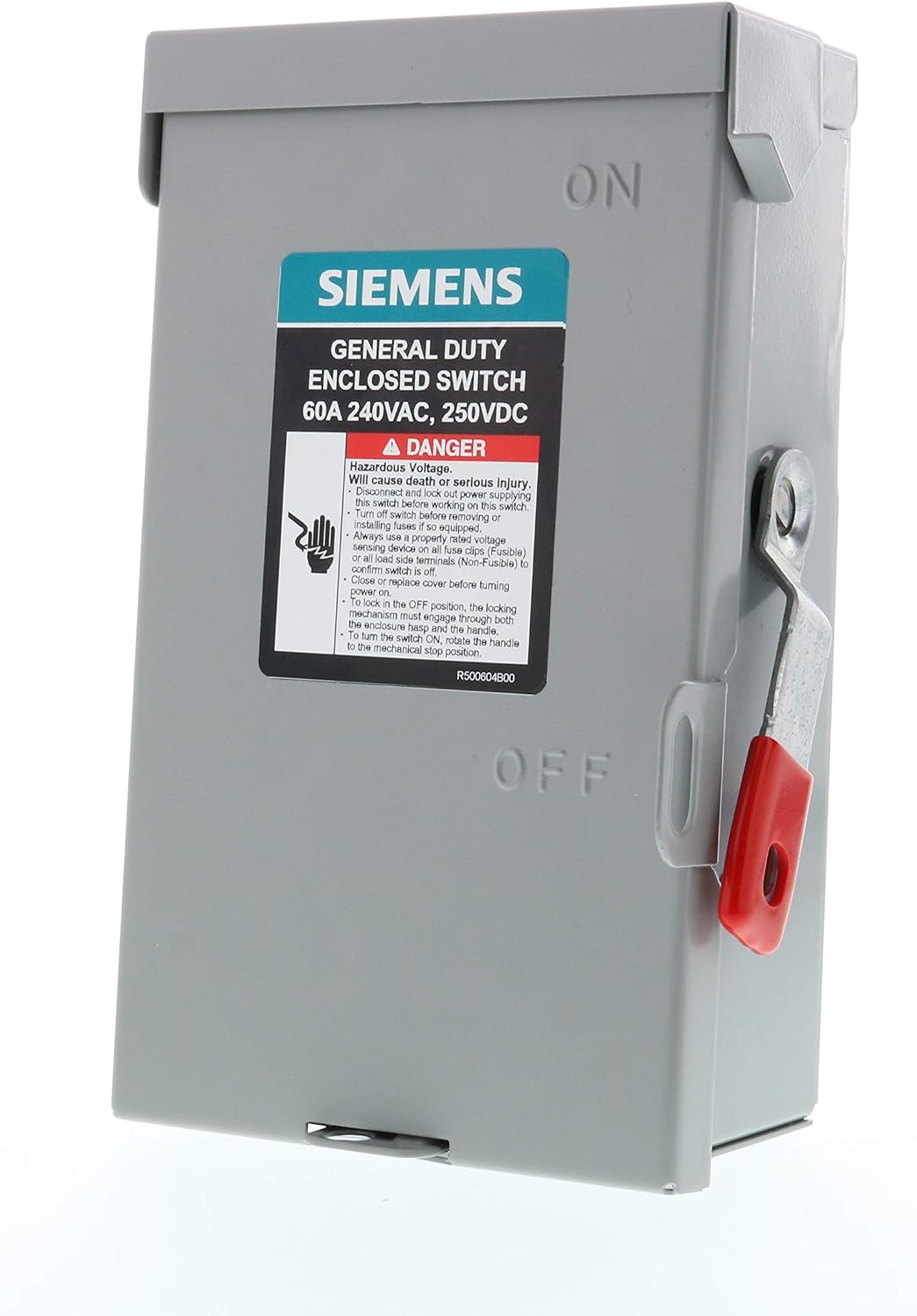

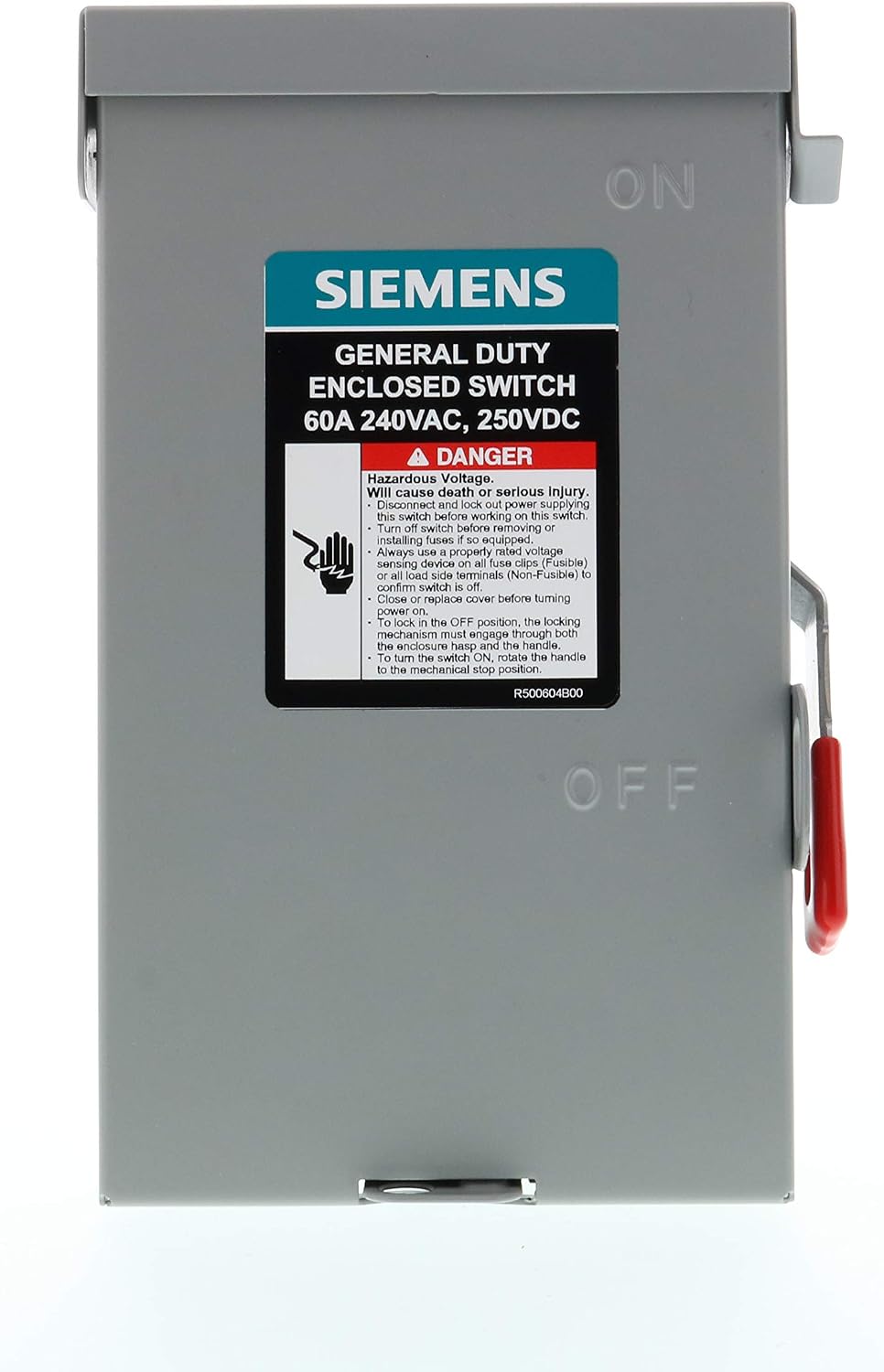

SIEMENS 2P 60A 240V General Duty Safety Switch Outdoor, Non-Fusible

• 120/240V, single phase, 2 wire, non-fusible safety switch
• Visible blade, double-break switch action
• Quick-make, quick-break mechanism that ensure positive operation
• Durable ON/OFF indication imbedded in steel door eliminates risk of scratching or fading
• Compact size for easy handling and efficient space utilization

Siemens General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240V AC or less where the available fault current is less than 100,000A when used with Class R or T fuses, or 10,000A max when used with Class H fuses. All switches are provided with imbedded "ON" and "OFF" indicators and padlocking provisions on the handle and door. All switches are UL listed. Fuses not included on fusible device. Use HA type hubs if required.

Specifications

• Operation Mode: Off
• Current Rating: 60 A
• Operating Voltage: 240 volts
• Contact Type: Non-fusible
• Connector Type: Screw Terminals
• Switch Type: Double-break
• Terminal: Screw
• Material: LNF222RA
• Item dimensions L x W x H: 5.43 x 3.95 x 8.56 inches
• Circuit Type: 2-way
• Mounting Type: Door Mount
• Actuator Type: Hinge Lever
