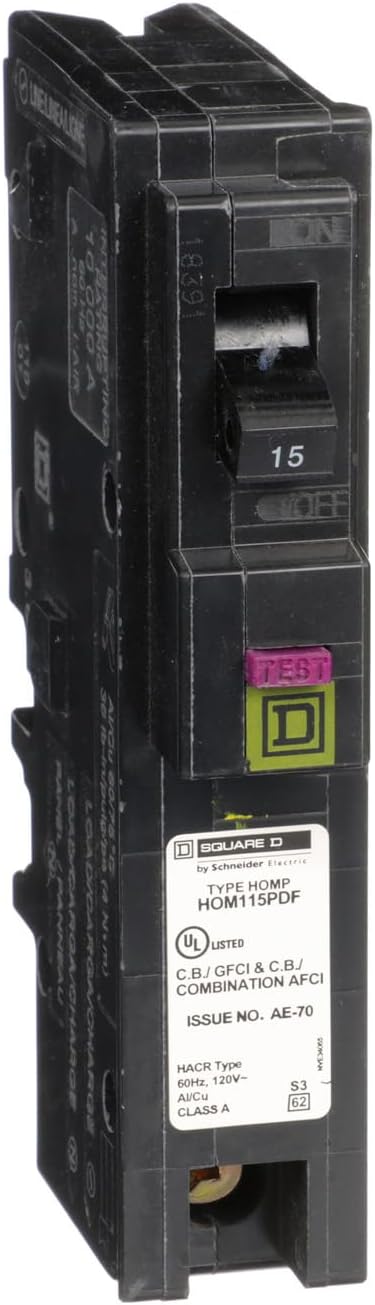

Square D by Schneider Electric Square D - HOM115PDFC Homeline Plug-On Neutral 15 Amp Single-Pole Dual Function (CAFCI and GFCI) Circuit Breaker

• Innovative neutral connection design leads to fewer connections and faster installation, no pigtails which frees up gutter space
• Compatible with Homeline series 4 and newer load centers only
• Rated for 120 VAC
• Rated for 10,000 AIR
• ANSI certified and UL listed

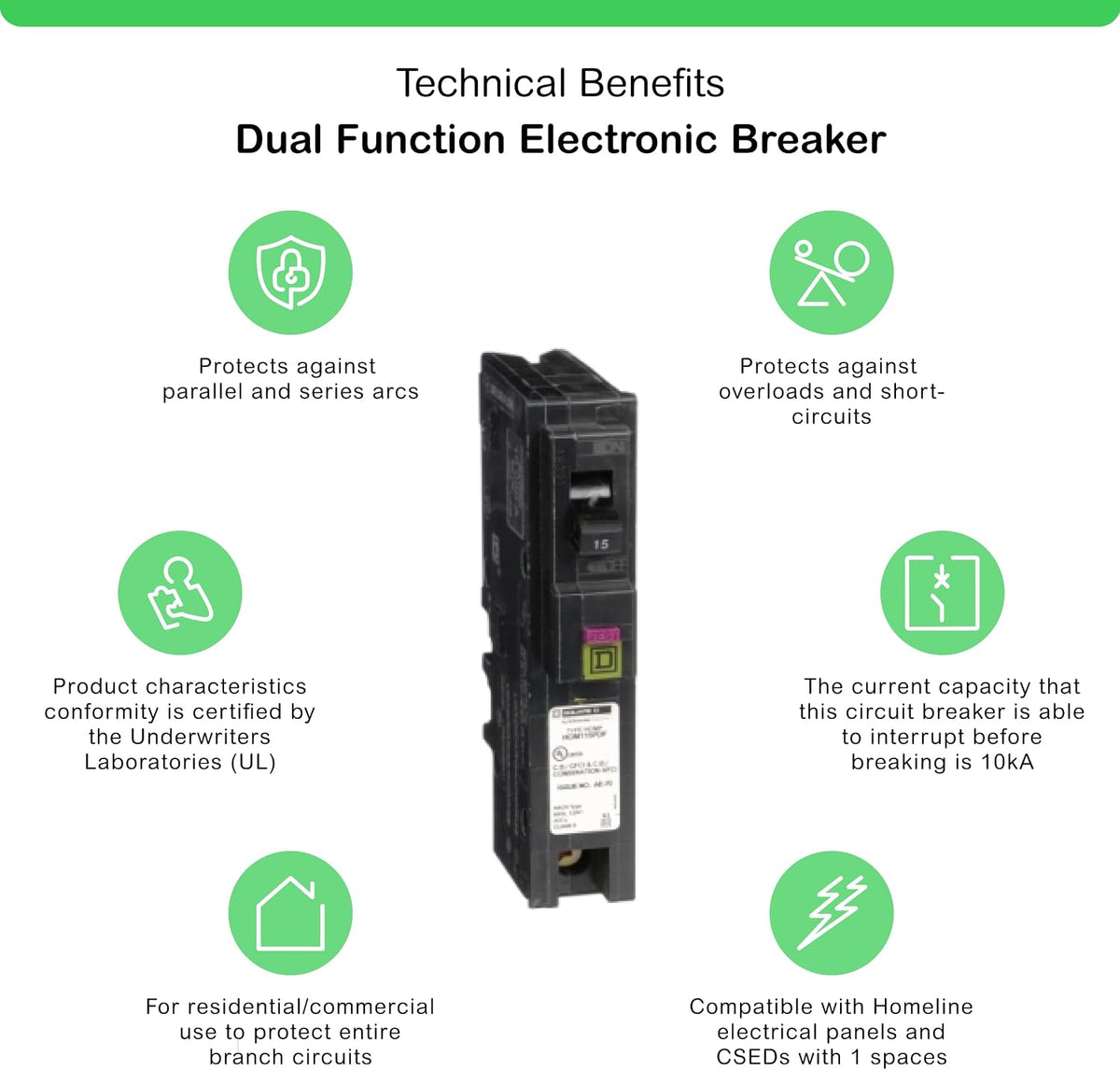

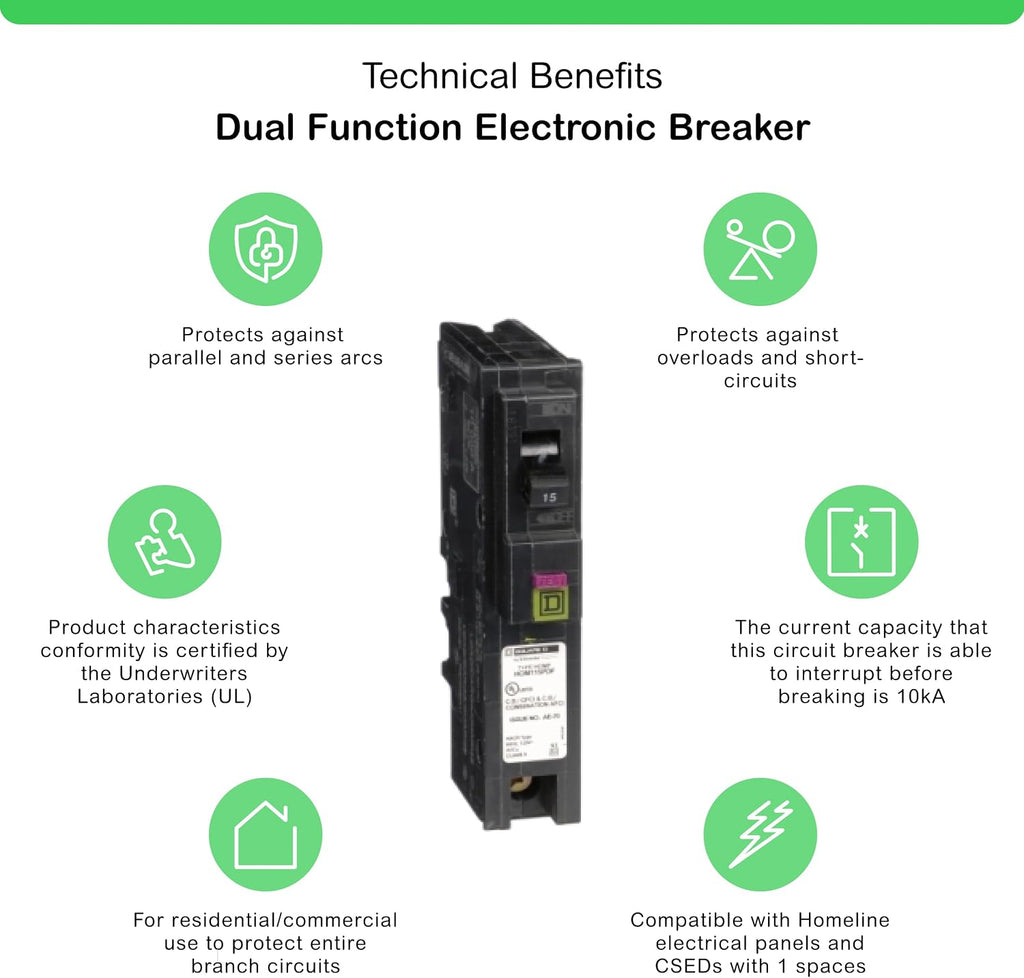

Square D by Schneider Electric Homeline 15 Amp 1-pole Plug-on Neutral Dual Function Circuit Breaker is a space and labor saving device, engineered to meet prevailing National Electric Code requirements. This device combines 2 critical technologies; Combination Arc Fault protection and ground fault protection (class A), in a single, easy-to-install device. The National Electric Code now requires both Combination Arc Fault and ground fault protection on all 1-Pole, 15 Amp and 20 Amp kitchen and laundry circuits. Prior to the release of this new device, a contractor or homeowner's only choice would have been to use a Combination Arc Fault circuit breaker in conjunction with an expensive, bulky ground fault receptacle. The new dual function circuit breakers help reduce cost and eliminate the hassle of using 2 separate devices to provide this essential protection. It's a win for contractors and homeowners alike. Designed for reliability, the Homeline Plug-on Neutral Dual Function Circuit Breaker connects directly to the neutral bar, providing a time and labor-saving installation. Several advantages from the plug-on neutral design are fewer connections which lead to faster installation and an innovative neutral clip eliminates pigtails which in turn frees gutter space. Like all Square D CAFI circuit breakers, it is integrated with time saver diagnostics, a unique feature that provides additional circuit information and minimizes troubleshooting at the touch of a button.

Specifications

• Current Rating: 15 A

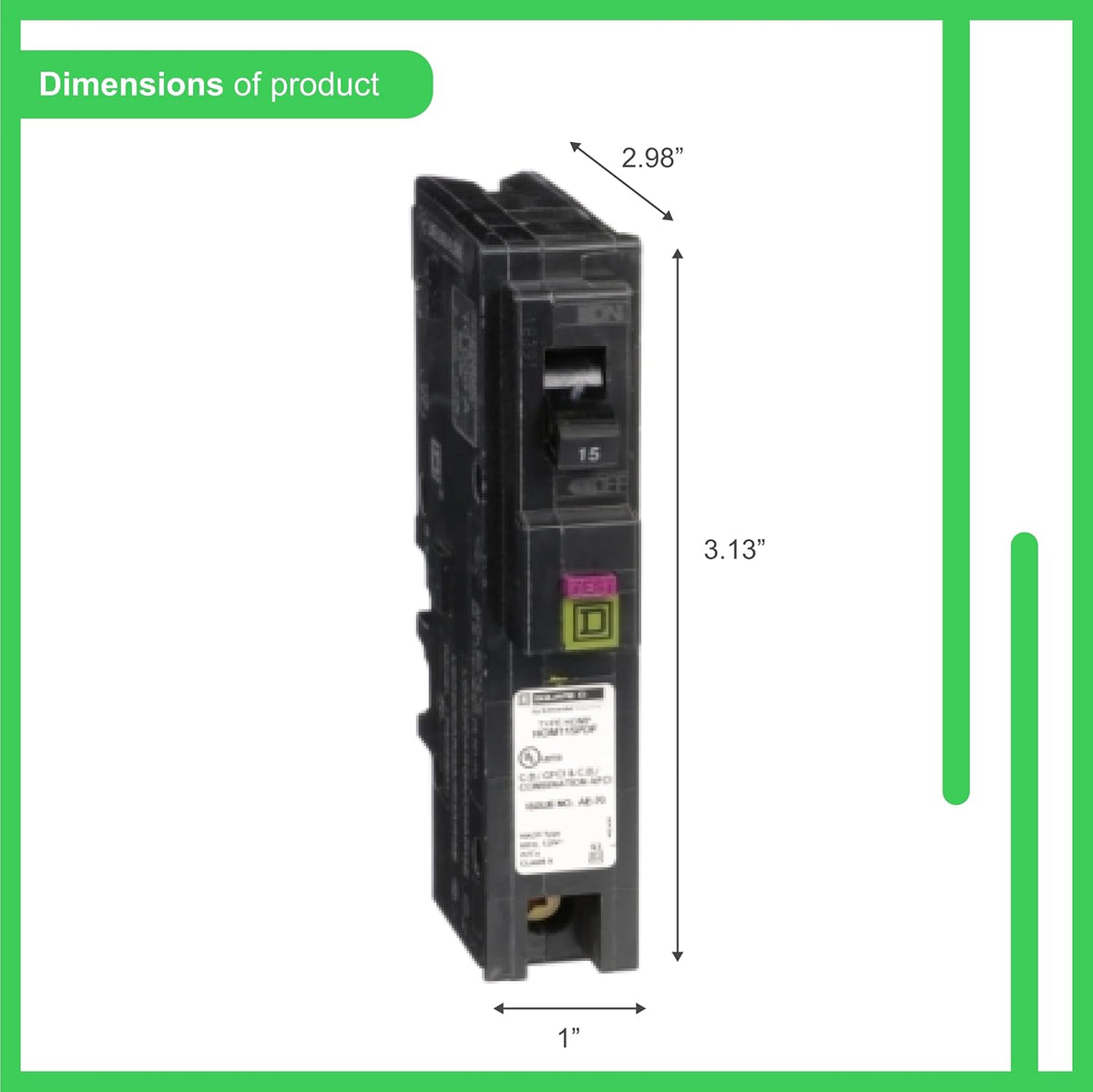

• Product Dimensions: 2.98"D x 1"W x 3.13"H
• Circuit Breaker Type: GFCI
• Mounting Type: Pole Mount
• Number of Items: 1
• Unit Count: 1 Count
• Global Trade Identification Number: 00785901978695
• Included Components: Square D - HOM115PDFC Homeline Plug-On Neutral 15 Amp Single-Pole Dual Function (CAFCI and GFCI) Circuit Breaker,
• Item Weight: 8 ounces
• Item Type Name: Square D - HOM115PDFC Homeline Plug-On Neutral 15 Amp Single-Pole Dual Function (CAFCI and GFCI) Circuit Breaker,
• Number of Poles: 1
• Voltage: 240 volts
