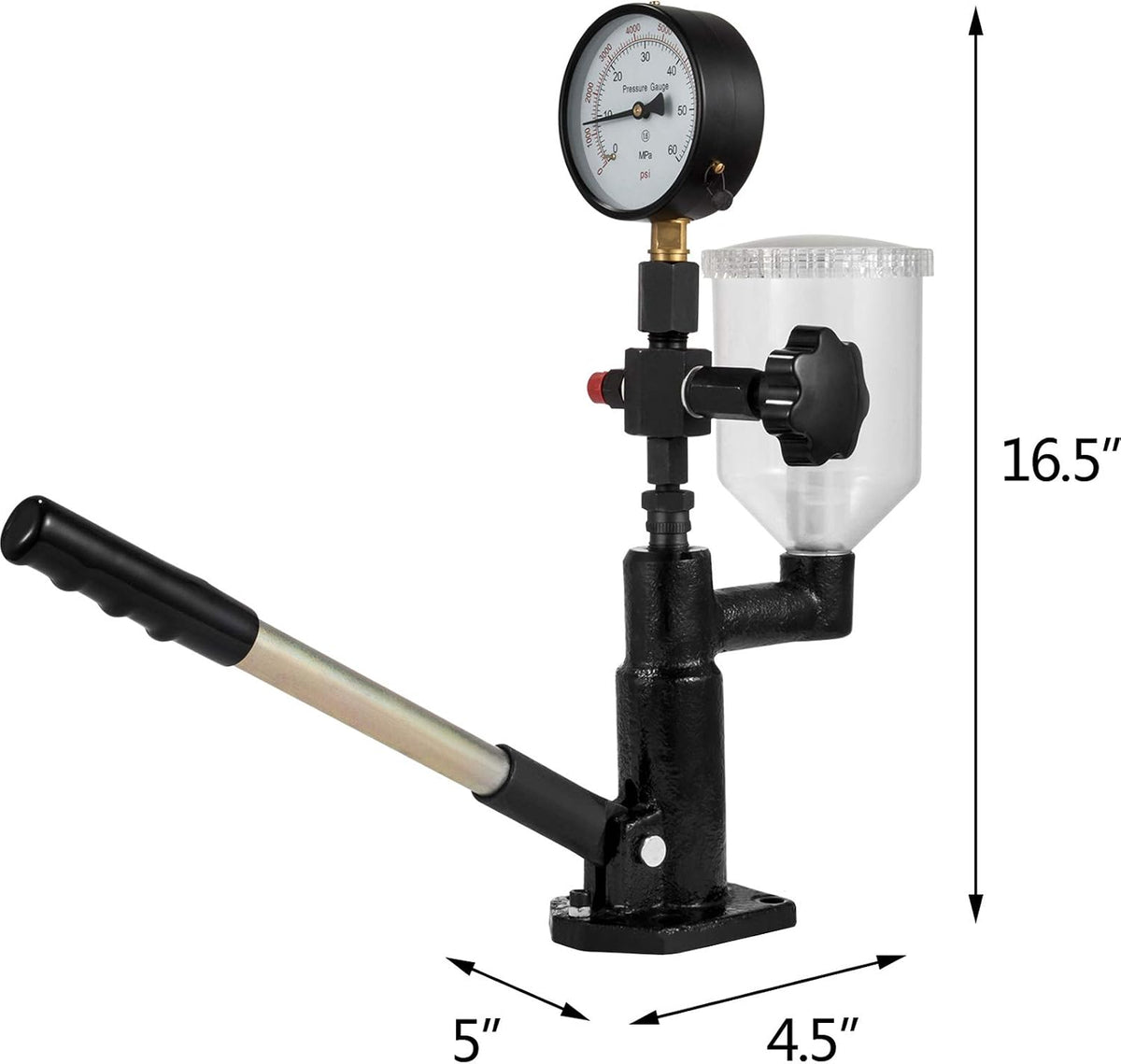

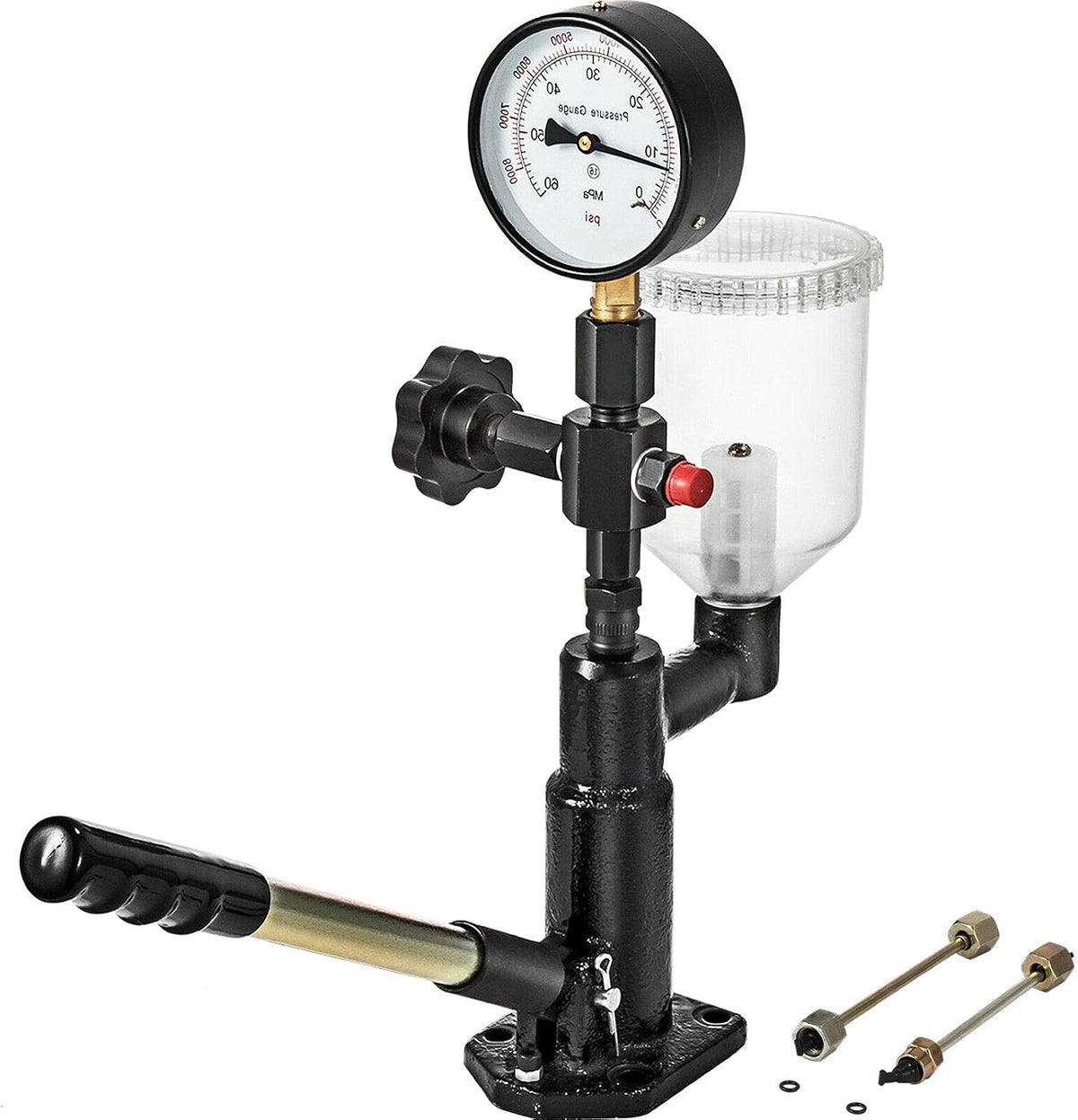

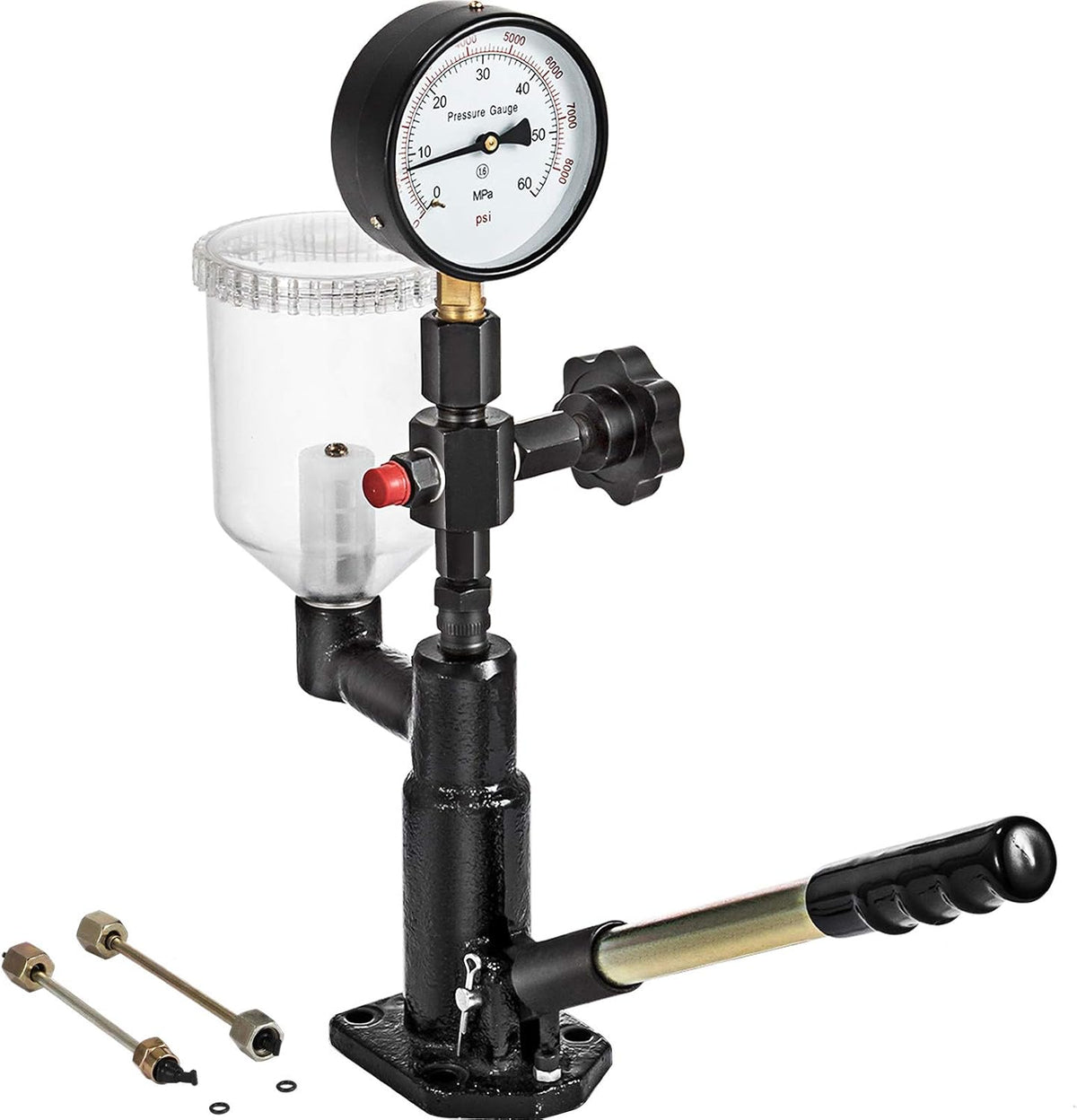

Vevor 400Bar 6000PSI Diesel Fuel Injector Tester Diesel Injector Nozzle Tester with Dual Scale Gauge to Adjust Injector Nozzle Pressure and Testing

• Premium Cast Iron: The diesel injector tester forged by high-quality cast iron, its durability and rigidity is dramatically increased. It also consists of a plastic fuel cup to contain the fuel, and with a stainless pressure gauge to detect air pressure precisely.

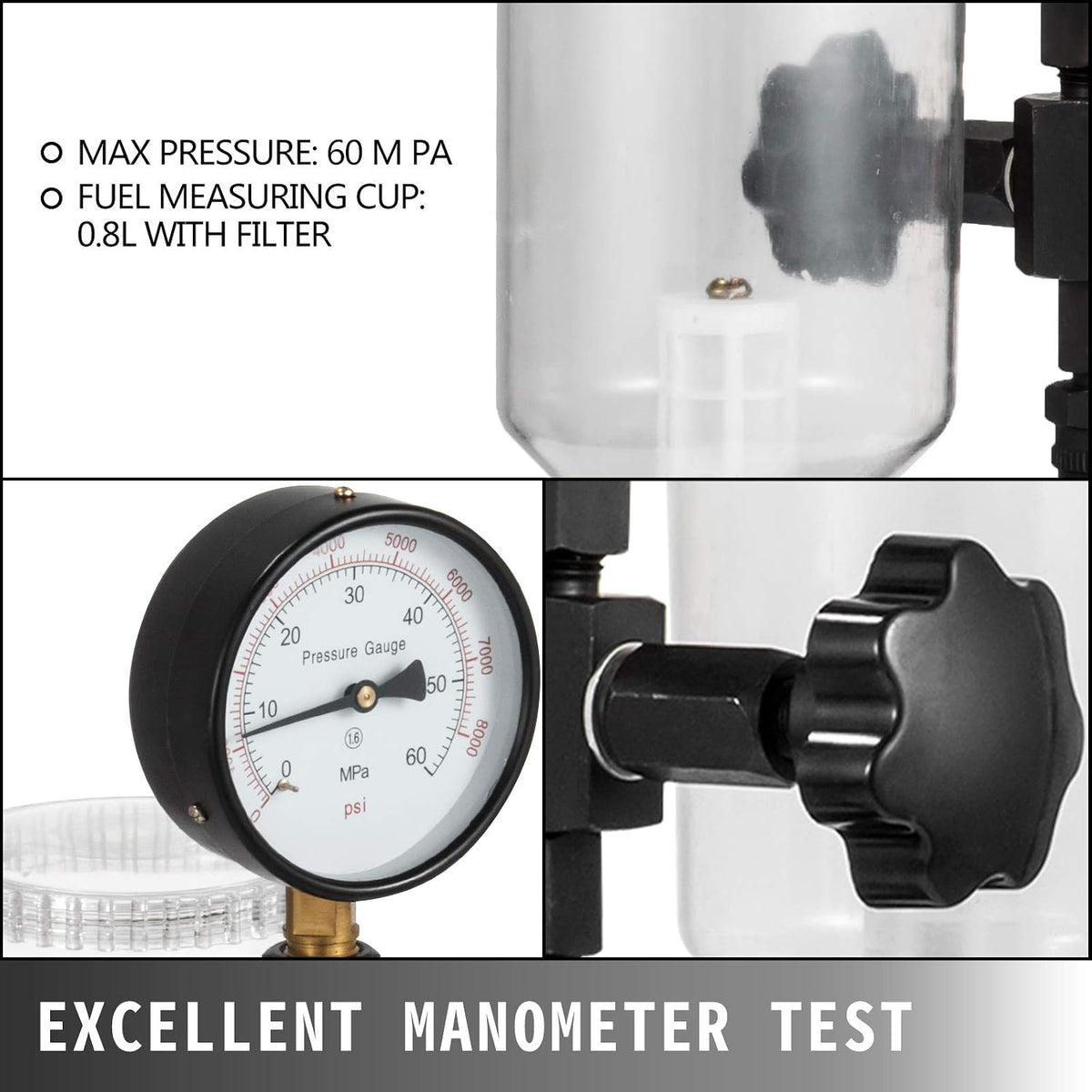

• Large Measuring Range: With precision dual scale gauge, the measuring value range from 0-600 bar/ 0-8000 psi, Max test pressure up to 60M Pa. (100 mm Dial, 3/8" BSP thread.) The transparent fuel measuring cup can hold 0.8L oil, and with the filter to help conduct kinds of injector nozzles tests.

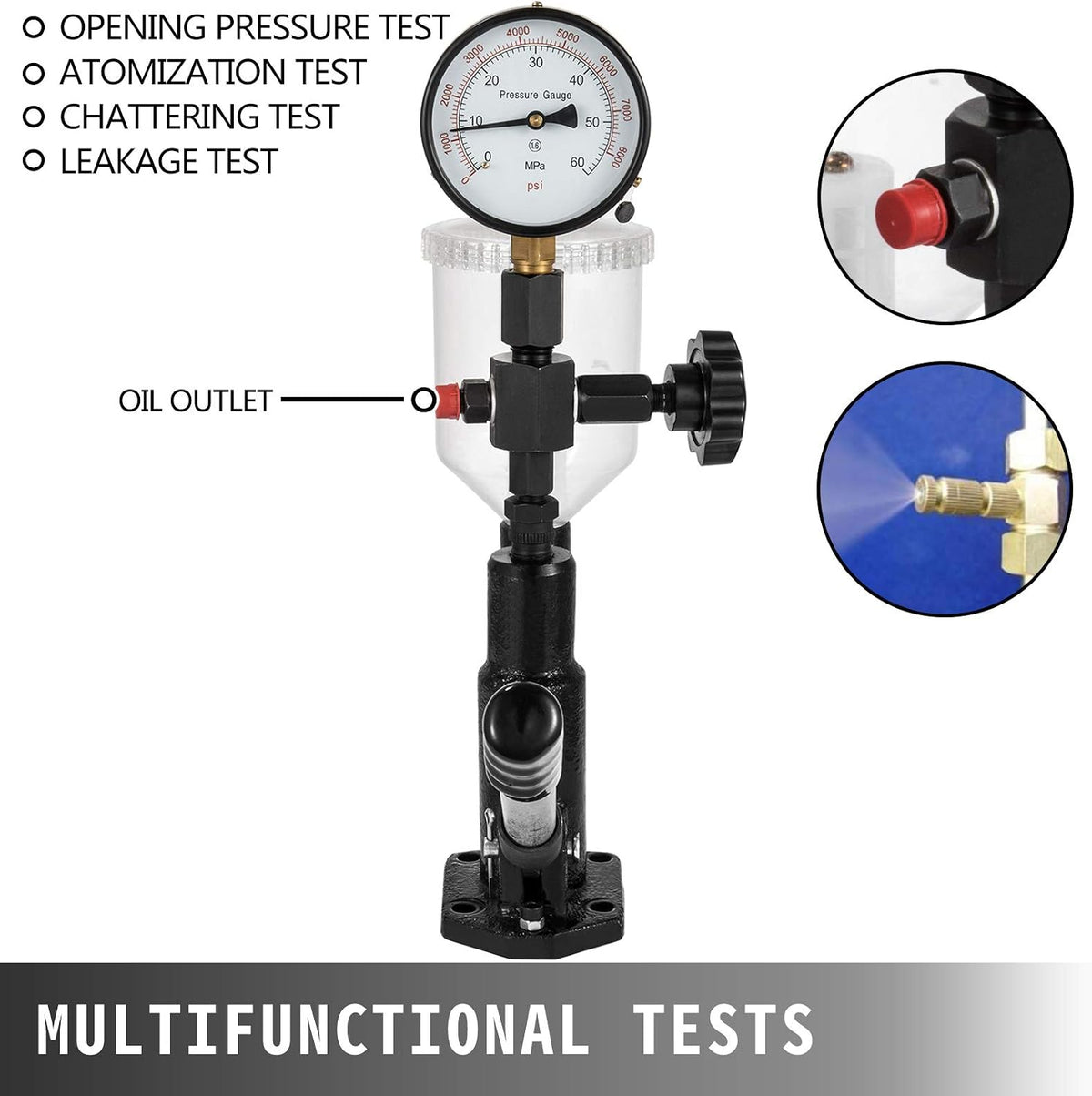

• Superior Tests Ability: The tool set is capable of accomplishing proper injection nozzle opening pressure test, leakage test, chattering test, an inspection of spray pattern, and Atomization. With such a multifunctional test capability, the diesel injector tester is the ideal tool for the examination of auto diesel injectors.

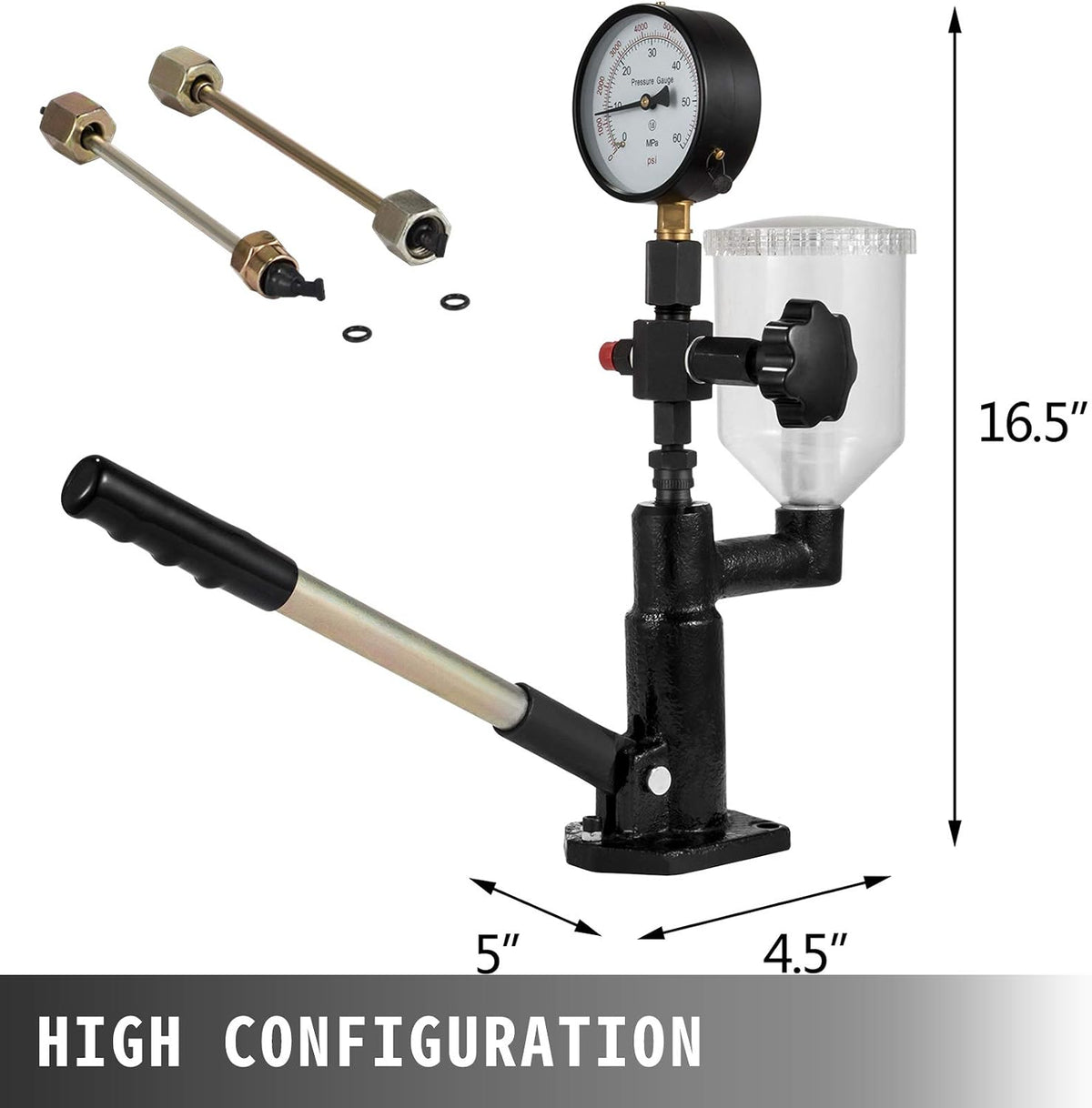

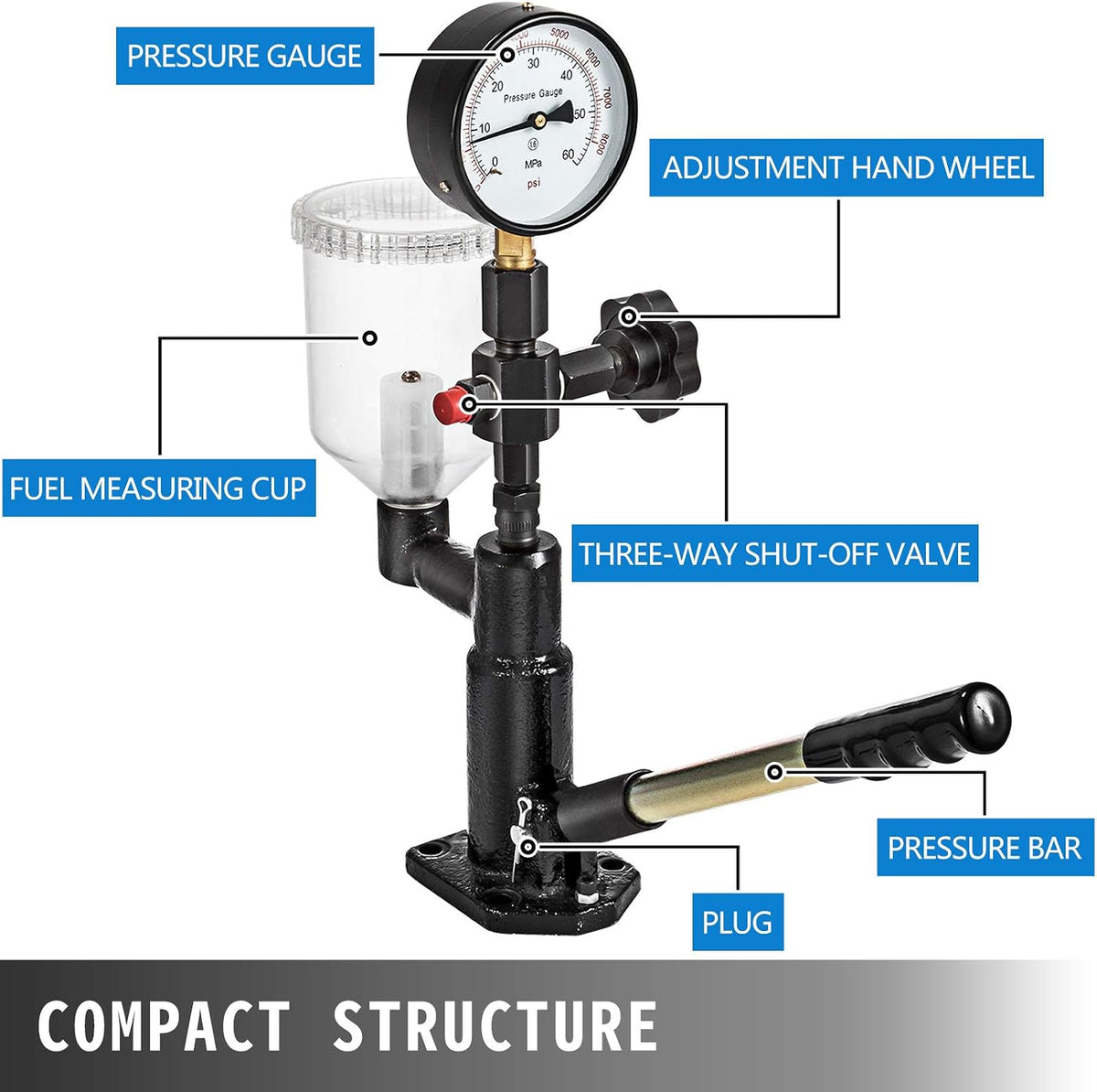

• Standard Accessories: The injector pop tester kit is equipped with 60MPa pressure gauge, handle, high-pressure pipes, A and B type with m.m. size nuts (12 X 1.5) and (14 X 1.5) for connections, 0.8L fuel cup with a 5-micron original Bosch filter, piston/element, and delivery valve. Two extra oil pipes are included in the package for your testing use.

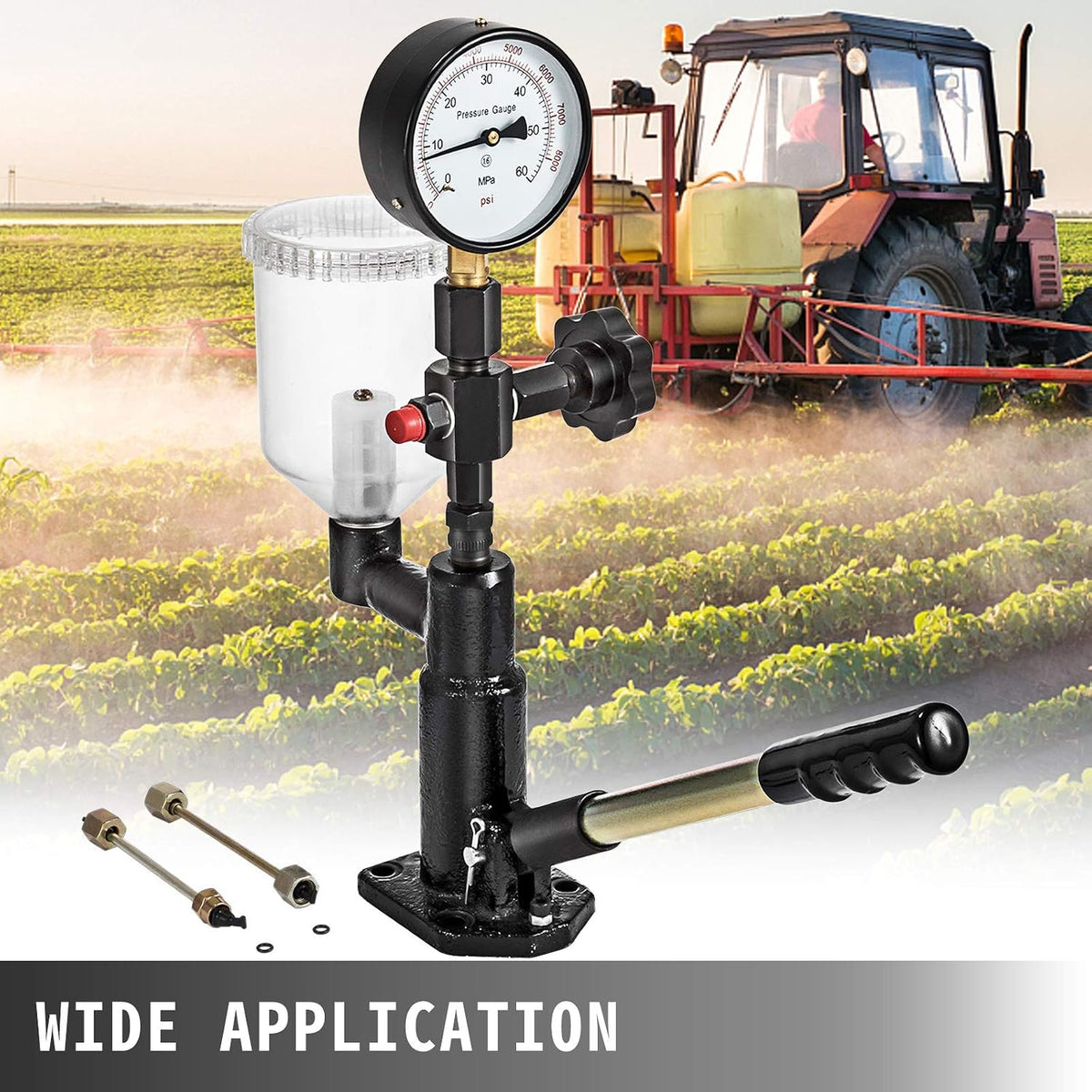

• Wide Utility: Diesel fuel injector tester is widely used in the calibration of fuel injectors of diesel engines of automobiles and tractors. It is suitable for all types of diesel injectors except (CRDI) Common Rail Diesel Injectors.

Specifications

• Material: Cast Iron
• Item dimensions L x W x H: 18 x 10 x 6 inches
• Item Weight: 12 pounds
• Number of Items: 1
• Unit Count: 1 Count
• Number of Packs: 1
• Material Type: Cast Iron
• Thread Style: Npt
• Item Dimensions: 18 x 10 x 6 inches
